Statement:

This product is based on the secondary development and integration of hardware facilities of excellent suppliers of softvalley. Provide a complete set of auxiliary system and other integrated system integration. Please contact the work order for details.

1. System overview:
With the development of national economy, more and more super large bridges have entered people's vision, and the bridge structure is gradually developing to light and slender. At the same time, the load, span and deck width of the bridge are increasing, and the structural type is changing. These transportation infrastructures play a great role in people's economic life. Long term health monitoring of bridges is an important link to evaluate the health status of bridges, ensure bridge safety and avoid accidents. Monitoring bridge deformation can effectively reflect the working condition of bridge structure and provide reliable data basis for corresponding management departments. Therefore, deformation monitoring to provide early warning of bridge health is a long-term work, which is of great significance.
◆ obtain the real-time change of GNSS monitoring point displacement of cable tower, bridge deck and other characteristic parts in real time
◆ by analyzing the displacement change of monitoring points, the operation law of the bridge under various environments is obtained
◆ evaluate the health status and structural safety of the bridge structure, and comprehensively obtain the information of the bridge operation status to evaluate the safety, durability and serviceability of the structure.
◆ display the change of bridge displacement through data and build a three-dimensional model
◆ provide important data for verification of bridge design and evaluation of load design

Two schemes are provided for deformation monitoring of tunnels, bridges, slopes and buildings:

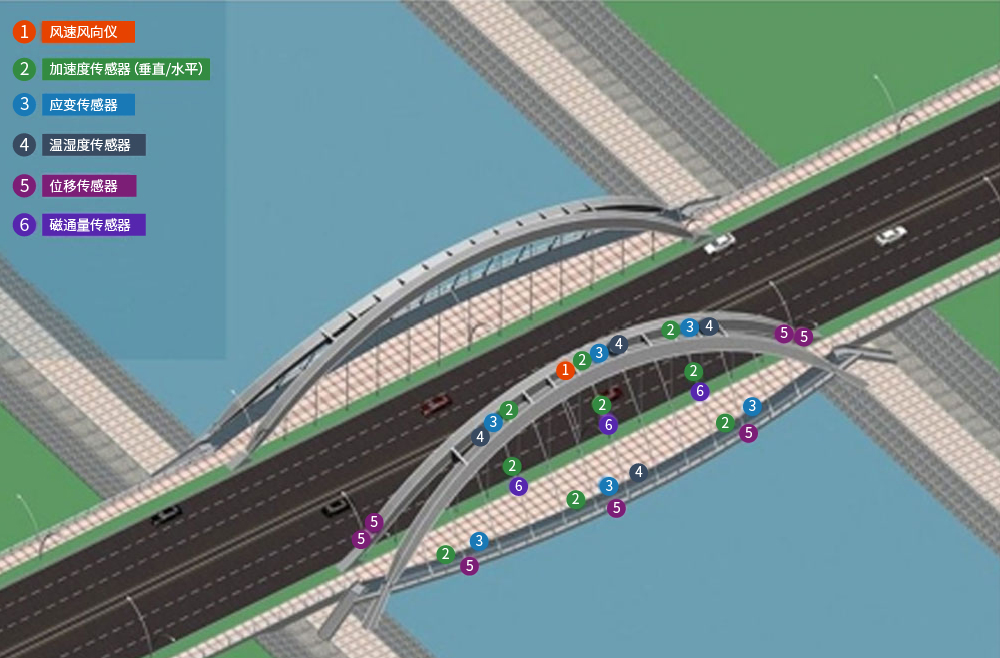

Scheme 1: traditional scheme:

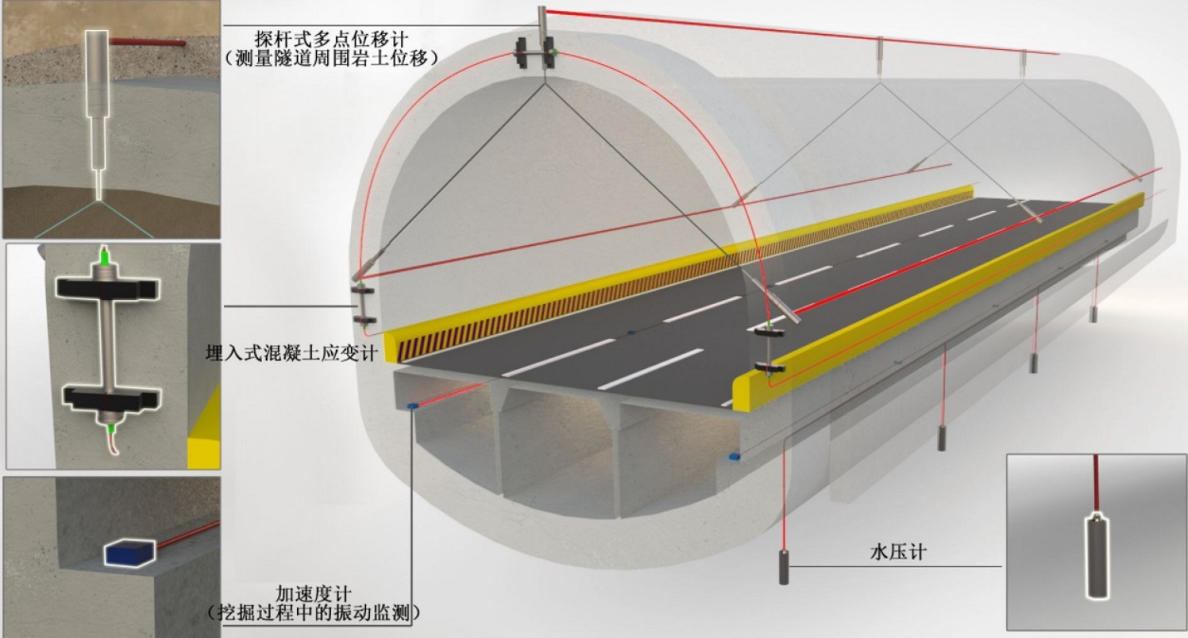

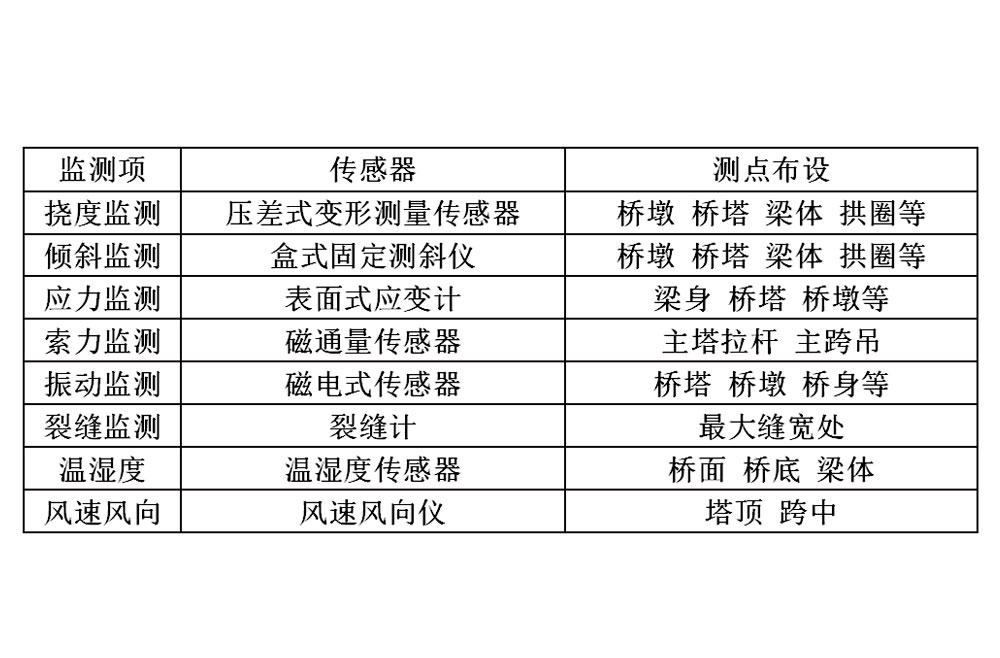

The traditional scheme adopts several sensor modes and embedded tunnel method to realize monitoring.
Disadvantages: many equipment, high cost, trouble in embedding and taking out operation, high labor cost and poor accuracy of monitoring surface.
Advantages: mature traditional mode, wide application range and high single point accuracy.

Statement:

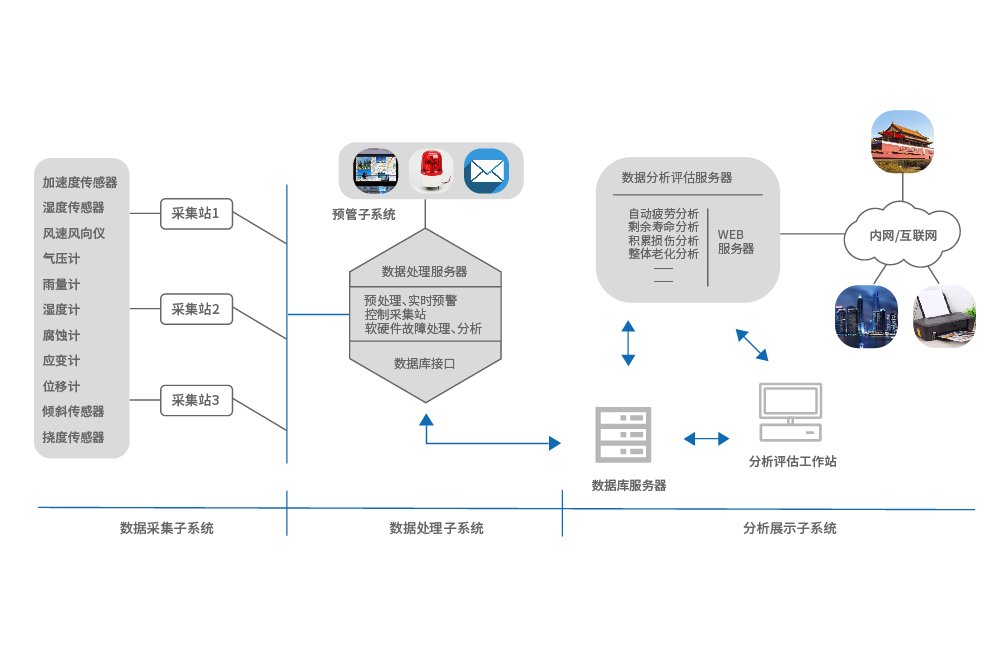

The structure diagram is only for reference. The software and hardware of the system design need to be customized and developed in combination with the actual needs of the project. The finished products are not sold directly, but only the technical realization diagram is provided.

Scheme 2: innovation point array scheme
This scheme adopts a new point array mode, combined with artificial intelligence image recognition and point cloud array technology.
Advantages: low cost, wide coverage, simple installation, charging scheme, leasing system, flexible configuration of monitoring points;
Disadvantages: innovative technology, few application cases, single point accuracy slightly lower than the traditional mode, but close to the reference parameters of the total station.
Soft Valley mainly promotes innovative solutions. As patents and confidentiality are involved, please consult the work order directly.

2. System features:
◆ the monitoring data is returned to the monitoring and dispatching center in real time;
◆ automatic calculation and storage of monitoring data;
◆ the displacement monitoring accuracy is high, which can reach the millimeter level (CDM solution software has built-in various errors and changed them into models to improve the accuracy of displacement monitoring)
◆ visual display of safety monitoring results, such as three-dimensional display;

3. Industry advantages:
Soft Valley is based on GNSS technology and hardware integration system. Relying on the software and hardware resources and flexible and powerful technology supply of softvalley, we can customize and innovate products on demand. And can achieve efficient integration with other systems.

4. Price description
The marked price is for reference only, which depends on the actual demand, software and hardware functions, etc.

5. Other
Welcome to consult the work order
